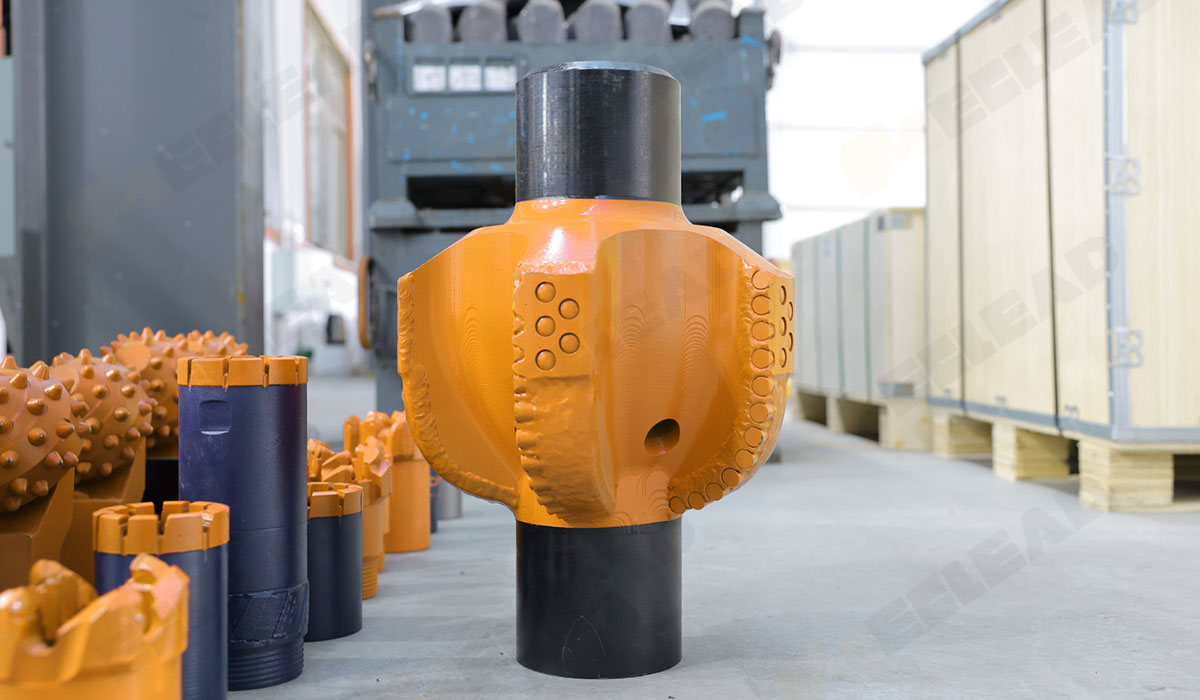

A PDC reamer is a drilling tool used in horizontal directional drilling (HDD) to enlarge pilot holes. Equipped with polycrystalline diamond compact cutters, PDC reamers provide high cutting efficiency, excellent wear resistance, and stable drilling performance in rock and hard ground formations.
A PDC reamer is a specialized drilling tool designed to enlarge pilot holes during horizontal directional drilling operations.
The cutting structure uses polycrystalline diamond compact cutters, which are widely known for their extreme hardness and wear resistance. These cutters allow the tool to efficiently break rock formations and compact soils while maintaining stable drilling performance.
Key components of a PDC reamer include:
Steel body
PDC cutters
Stabilizing blades
Mud flow channels
During horizontal directional drilling, a PDC reamer is used in the reaming stage to enlarge the pilot hole created by the drill bit.
The process typically includes the following steps:
Pilot hole drilling
Reamer installation behind the drill string
Hole enlargement through rotation and cutting
Pipeline or cable installation
Because of their diamond cutters, PDC reamers can cut through rock efficiently while maintaining stable hole geometry.
PDC reamers offer several advantages over traditional reaming tools.
PDC cutters maintain sharp cutting edges, allowing faster drilling and improved penetration rates.
The diamond composite material provides excellent wear resistance, significantly extending tool life.
PDC reamers create smoother boreholes, which reduces friction during pipeline installation.
They perform particularly well in:
rock formations
hard clay
compact soil
mixed formations
In horizontal directional drilling (HDD), both PDC reamers and hole openers are used to enlarge boreholes. Although they serve a similar purpose, their design and application can be different depending on drilling conditions.
A PDC reamer typically uses fixed polycrystalline diamond compact (PDC) cutters to cut rock and hard formations with high efficiency.
A hole opener, on the other hand, is a broader category of drilling tools designed to enlarge holes. Hole openers may use different cutting structures such as roller bits, blades, or PDC cutters, depending on the formation type.
Because of their diamond cutting structure, PDC reamers are often preferred in hard rock or abrasive formations where durability and cutting efficiency are critical.
| Feature | PDC Reamer | Hole Opener |
|---|---|---|
| Cutting Structure | PDC diamond cutters | Cones, blades, or PDC cutters |
| Best Formation | Rock, hard ground | Soft to mixed formations |
| Cutting Efficiency | Very high in hard formations | Depends on design |
| Tool Durability | Excellent wear resistance | Varies by cutter type |
| Common Use | HDD rock drilling | HDD hole enlargement |
PDC reamers are widely used in trenchless drilling and HDD construction.
Common applications include:
oil and gas pipeline installation
fiber optic cable installation
underground utility construction
water pipeline installation
trenchless drilling projects
When selecting a PDC reamer for HDD drilling, contractors should consider several factors.
Formation type
Hole diameter
Drilling rig torque
Cutter layout
Choosing the correct reamer design can significantly improve drilling efficiency and reduce operational costs.
A PDC reamer is used to enlarge pilot holes during horizontal directional drilling operations.
Yes. PDC reamers perform very well in rock formations due to their diamond cutters.
A PDC reamer uses fixed diamond cutters, while other hole openers may use rolling cones or blades.
Bullet teeth such as B47K22H or C31 Bullet Teeth should be replaced when wear begins to reduce drilling efficiency or causes abnormal stress on the hard rock auger.
We provide high-efficiency, precision drilling equipment and technical support to ensure the success of mineral, geological, and engineering projects under complex global conditions.
A core barrel auger is the most effective tool for hard rock drilling in bore pile construction. It is designed to break and core high-strength rock formations (up to 280 MPa), while a drilling bucket is mainly used for soil and soft formations and performs poorly in hard rock conditions.
Core barrel drilling fails in hard rock mainly due to incorrect tool selection, mismatched cutting teeth, insufficient torque, and poor drilling parameters. To improve performance, contractors must optimize the core barrel design, select the right teeth, and match machine power with rock strength.
Choosing the right rock core barrel is critical for achieving high efficiency, low wear, and stable performance in hard rock drilling projects. Many contractors struggle with slow penetration, excessive tool wear, or even tool failure—often due to incorrect tool selection.
As one of the most essential Rotary Drilling Tools, the core barrel plays a key role in bored pile construction, especially in challenging ground conditions.
Not sure which drilling bucket fits your project? Start with our expert guides: [ What is a Drilling Bucket ? How to Choose the Right
When drilling in silt, clay, gravel , or fracturate rock , many contractors encounter the same costly problems: slow drilling speed, rapid tooth wear, and frequent bucket blockage.
These are not random issues — they are clear signs that your bucket drill is not matched to the ground conditions.
What is a heavy duty drilling bucket used for?
A heavy duty drilling bucket is designed for fracturate rock, clay, and mixed ground conditions. It features reinforced structure and wear-resistant teeth to improve penetration, reduce wear, and enhance the performance of a bucket drill rig.
PDC bits and tricone bits differ in cutting method and adaptability. PDC bits offer higher speed and lower failure risk due to no moving parts, while tricone bits perform better in hard rock and variable formations. The best choice depends on matching the bit to your geology.
Temporary casing is removable and reusable, making it the most cost-effective solution for most piling projects.
Permanent casing is only used when structural or geological conditions require it.

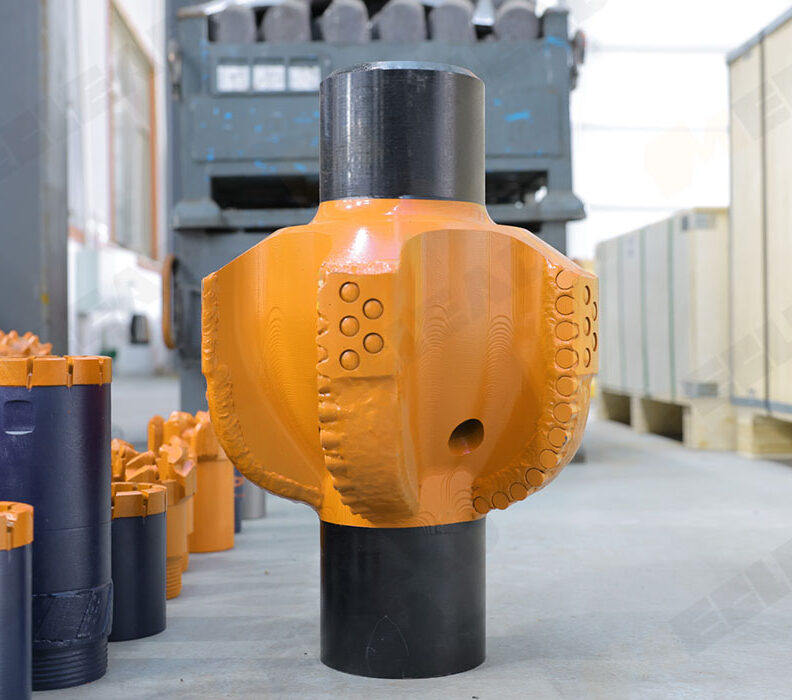

A PDC reamer is a drilling tool used in horizontal directional drilling (HDD) to enlarge pilot holes. Equipped with polycrystalline diamond compact cutters, PDC reamers provide high cutting efficiency, excellent wear resistance, and stable drilling performance in rock and hard ground formations.
