Drilling bucket for rotary rigs, including soil and rock types for foundation construction.

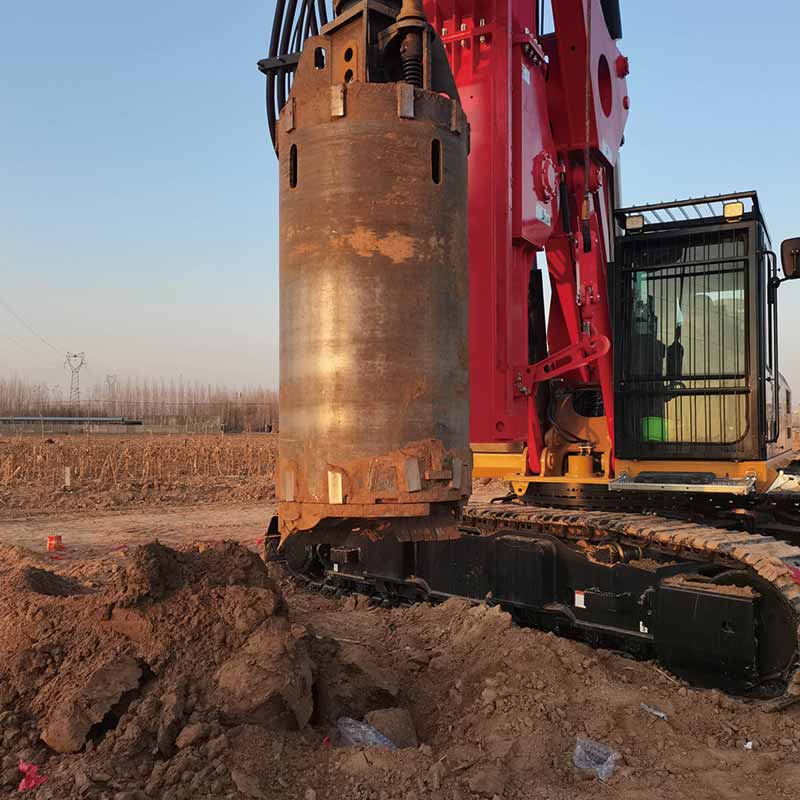

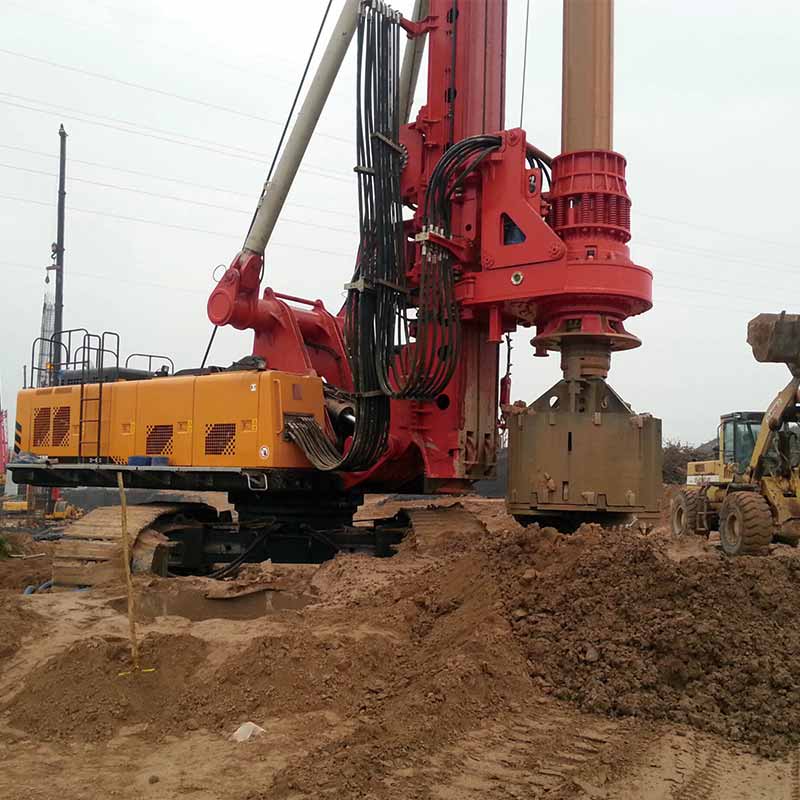

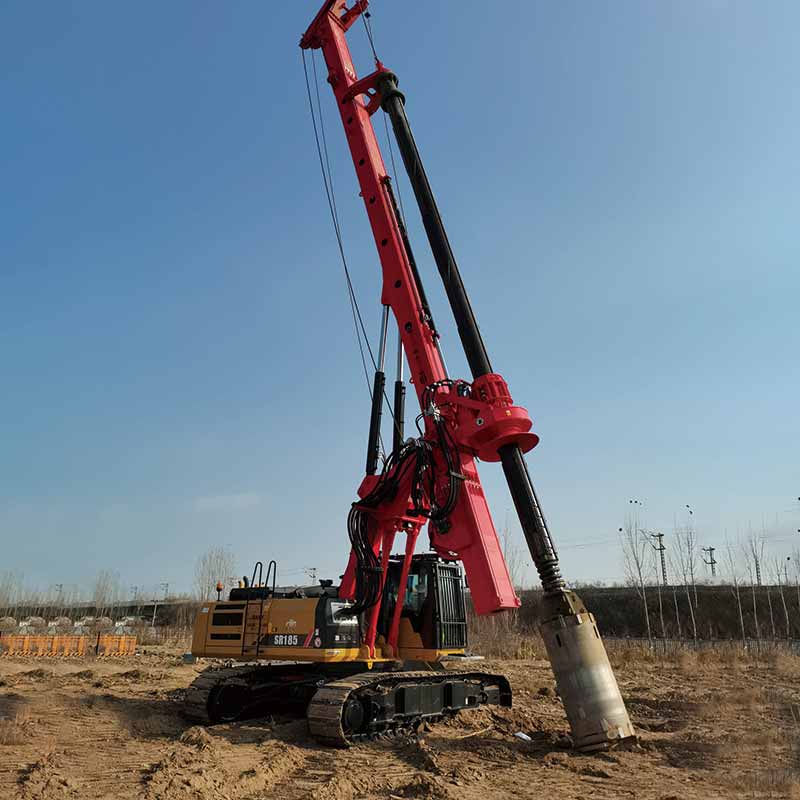

A drilling bucket is one of the most essential tools used in foundation piling and rotary drilling projects. Designed to drill and extract soil, sand, gravel, and rock efficiently from boreholes, this heavy-duty boring bucket plays a crucial role in constructing high-capacity bucket bore pile foundations.
Depending on ground conditions, contractors select the ideal tool for their bucket rig—such as a soil drilling bucket, rock drilling bucket, or clean out bucket—to maximize drilling efficiency and reduce tool wear.
Diameter: 600mm to 3000mm, customized according to your requirements
Suitable ground conditions: clay, sand and gravel, clay, highly weathered rock.

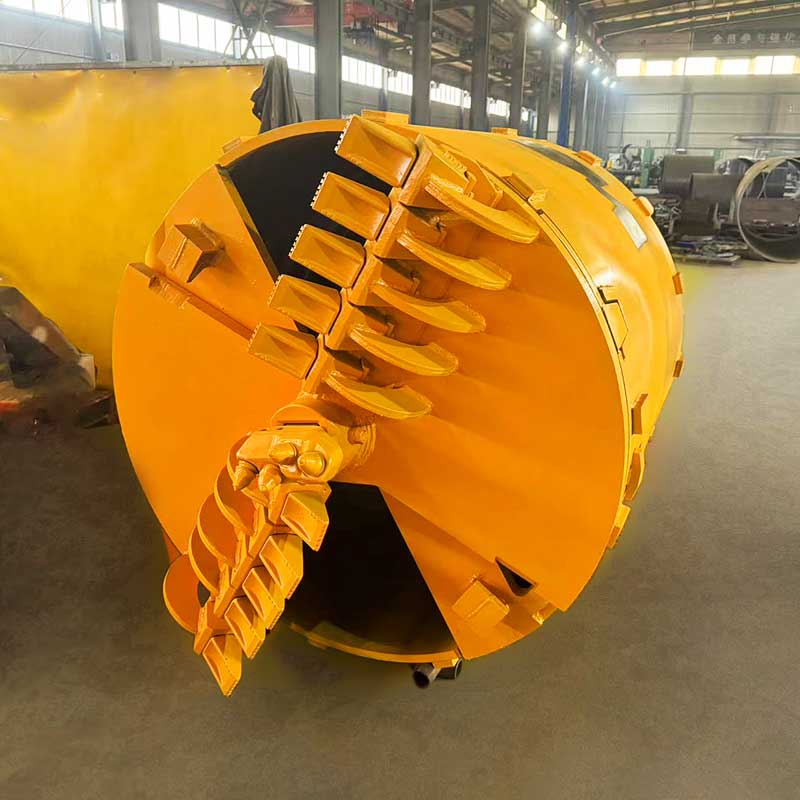

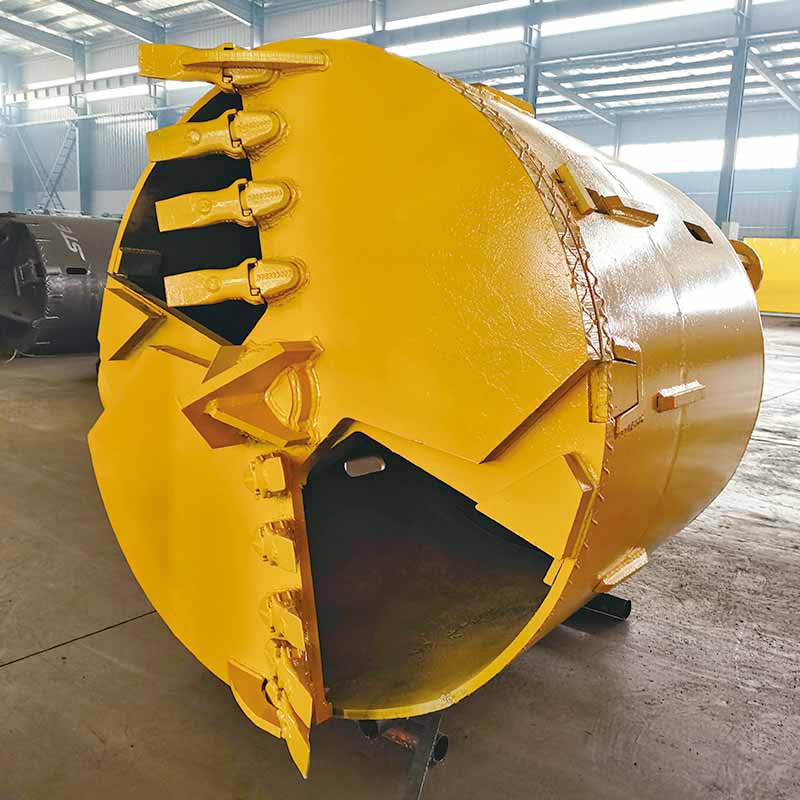

Equipped with high-strength Bauer soil teeth, Meclead buckets deliver fast penetration, smooth spoil release, and extended wear life in clay, sand, and loose gravel formations.
Diameter: 600mm to 3000mm, customized according to your requirements

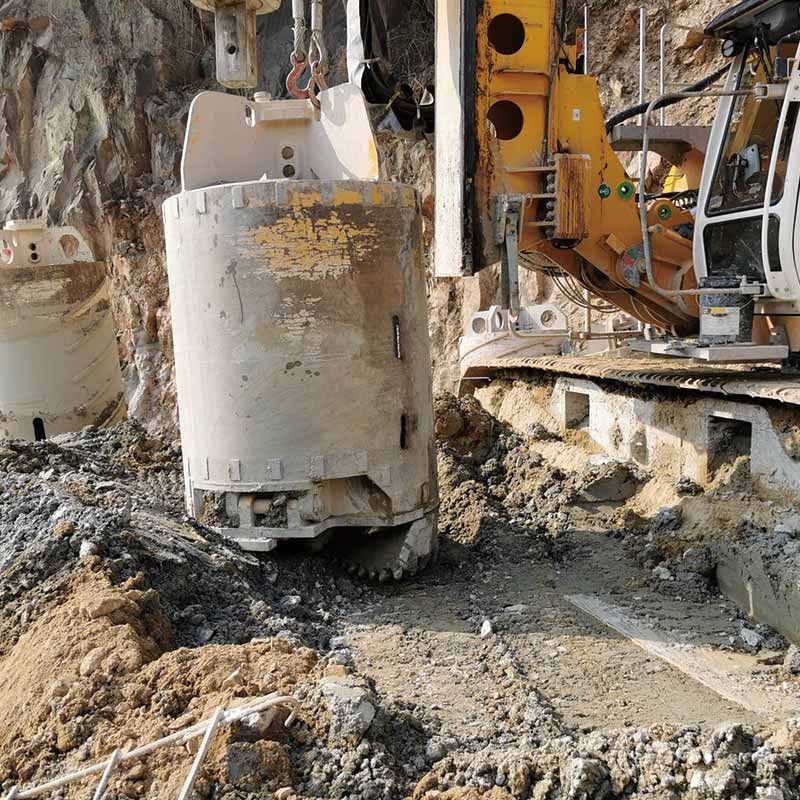

Suitable ground conditions: weathered rock, fractured rock, and mixed ground.

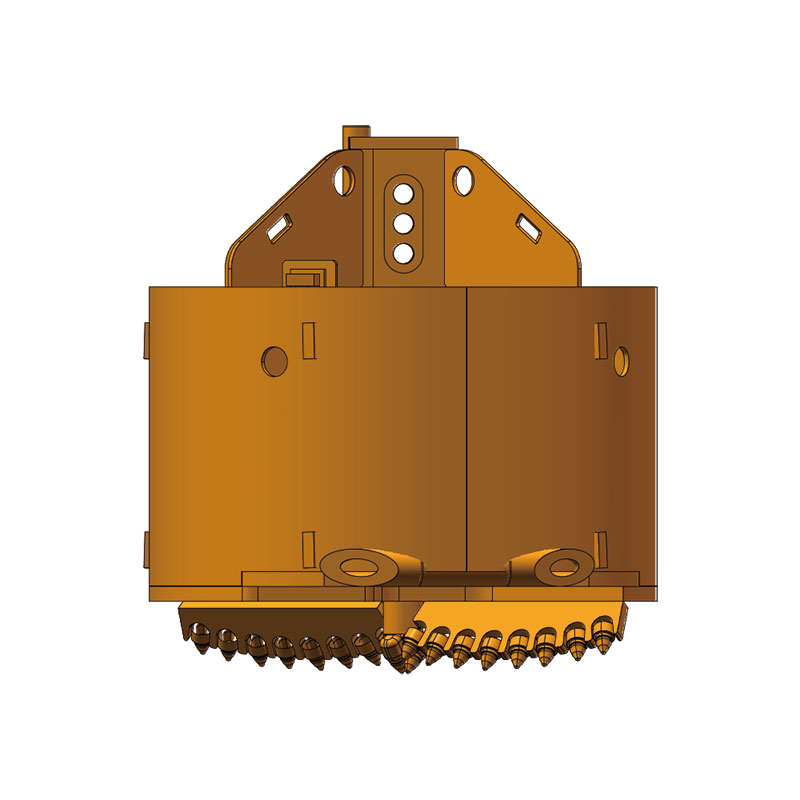

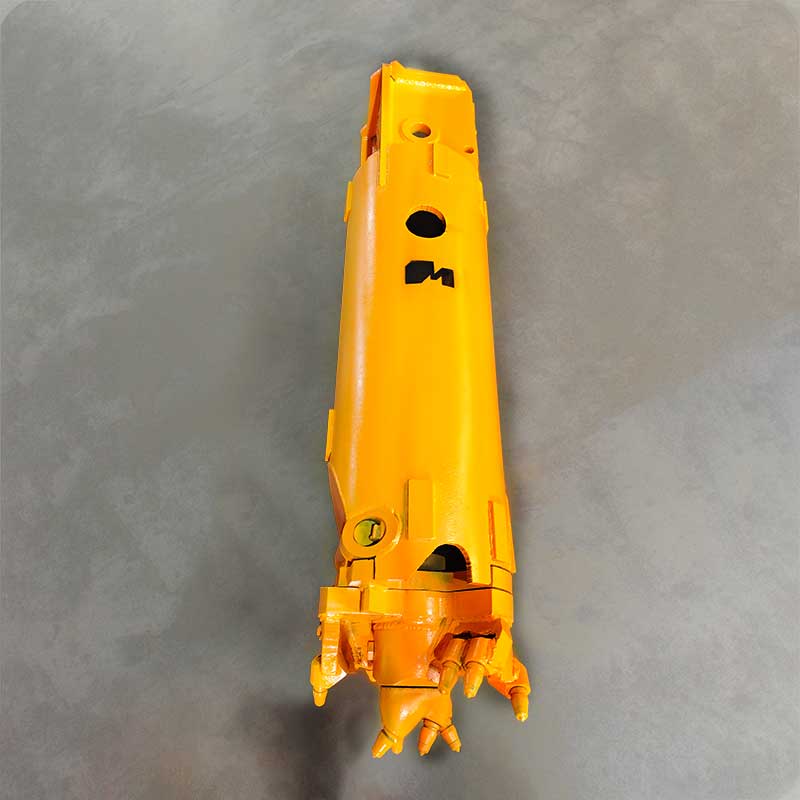

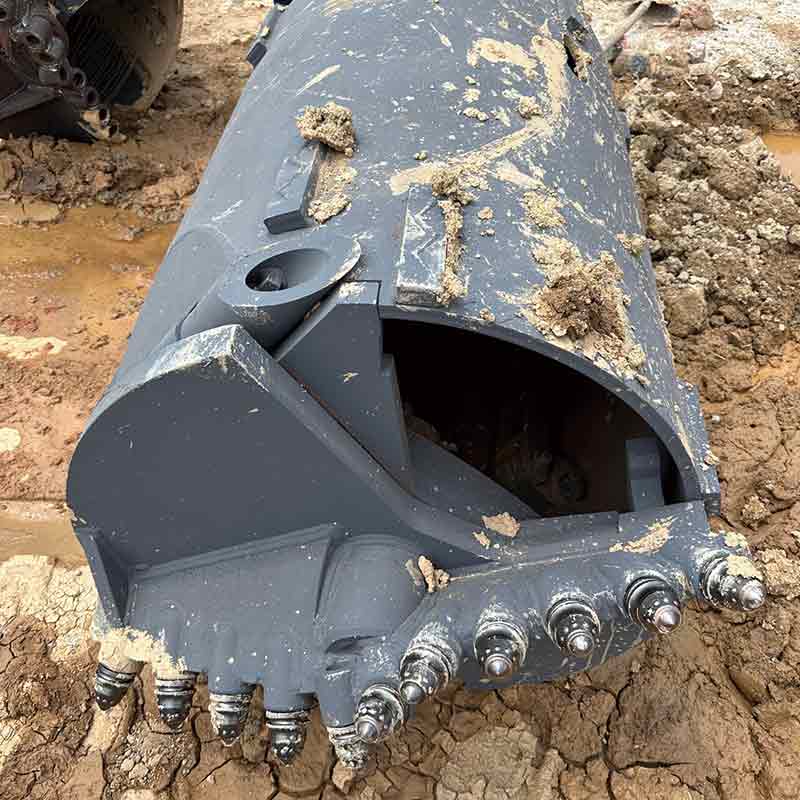

Armed with high-performance tungsten carbide bullet teeth, Meclead rock buckets deliver maximum crushing power, extended wear life, and fast penetration in hard rock and tough cobble layers.
Diameter: 600mm to 3000mm, customized according to your requirements

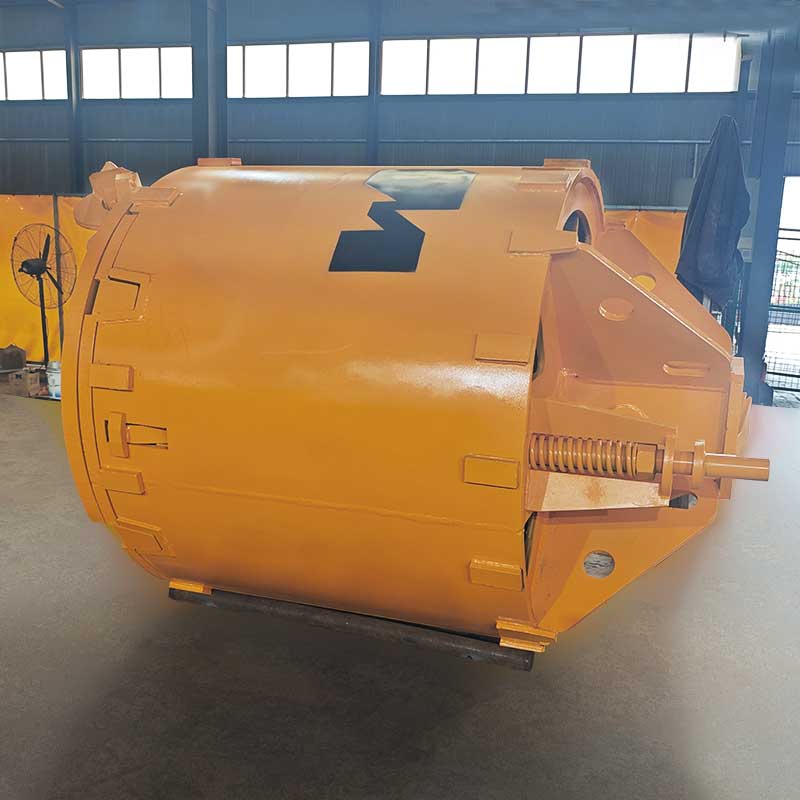

Designed for both wet and dry shafts, the Meclead spin-bottom clean-out bucket is engineered to run after drilling bucket or auger operations to clear loose soil, debris, and rock fragments. With clear open/closed visibility for the rig operator, it prevents spoils from spilling back into the slurry, ensuring a pristine shaft bottom every time.
| Cutting Dia | Shell HIT | Shell THK | Fixed Buttom THK | Rotate THK | Teeth No | Weight |
|---|---|---|---|---|---|---|
| Φ600 | 1200 | 16 | 40 | 40 | 6 | 650 |
| Φ800 | 1200 | 16 | 40 | 50 | 9 | 950 |
| Φ900 | 1200 | 16 | 40 | 50 | 10 | 1100 |
| Φ1000 | 1200 | 16 | 40 | 50 | 11 | 1230 |
| Φ1200 | 1200 | 16 | 40 | 50 | 13 | 1580 |
| Φ1500 | 1200 | 16 | 40 | 50 | 16 | 2060 |
| Φ1600 | 1200 | 16 | 40 | 50 | 17 | 2430 |
| Φ1800 | 1000 | 20 | 50 | 50 | 21 | 3400 |
| Φ2000 | 800 | 20 | 50 | 50 | 22 | 3900 |
| Φ2200 | 800 | 20 | 50 | 50 | 23 | 4400 |
| Φ2500 | 800 | 25 | 50 | 50 | 27 | 5800 |
| Φ2800 | 800 | 25 | 50 | 50 | 33 | 6800 |
| Φ3000 | 800 | 25 | 50 | 50 | 35 | 7700 |
With more than a decade of international trade experience, we understand the logistics, regulations, and technical standards of markets around the world. Our global expertise guarantees smooth cooperation and reliable delivery.
Each drilling tool undergoes strict quality inspection - from raw materials to final delivery. Our commitment to quality ensures that it maintains high performance and durability even under the most demanding drilling conditions.
With the ability to travel frequently and meet clients in person, we gain a deep understanding of on-site conditions and project requirements. This allows us to deliver precise, customized solutions that truly meet our clients’ needs.
Want more product details? Send us an inquiry
