An HDD hole opener, also known as a hole opener reamer, is a key hole opener drill bit used in horizontal directional drilling to enlarge the pilot hole to the required diameter.
Designed for hard rock and mixed formations, Meclead horizontal hole openers feature durable cutting structures, strong stabilization, and efficient hole cleaning performance. Replaceable cutters and reinforced body design help reduce downtime, lower torque, and improve drilling efficiency during HDD pipeline and trenchless drilling projects.

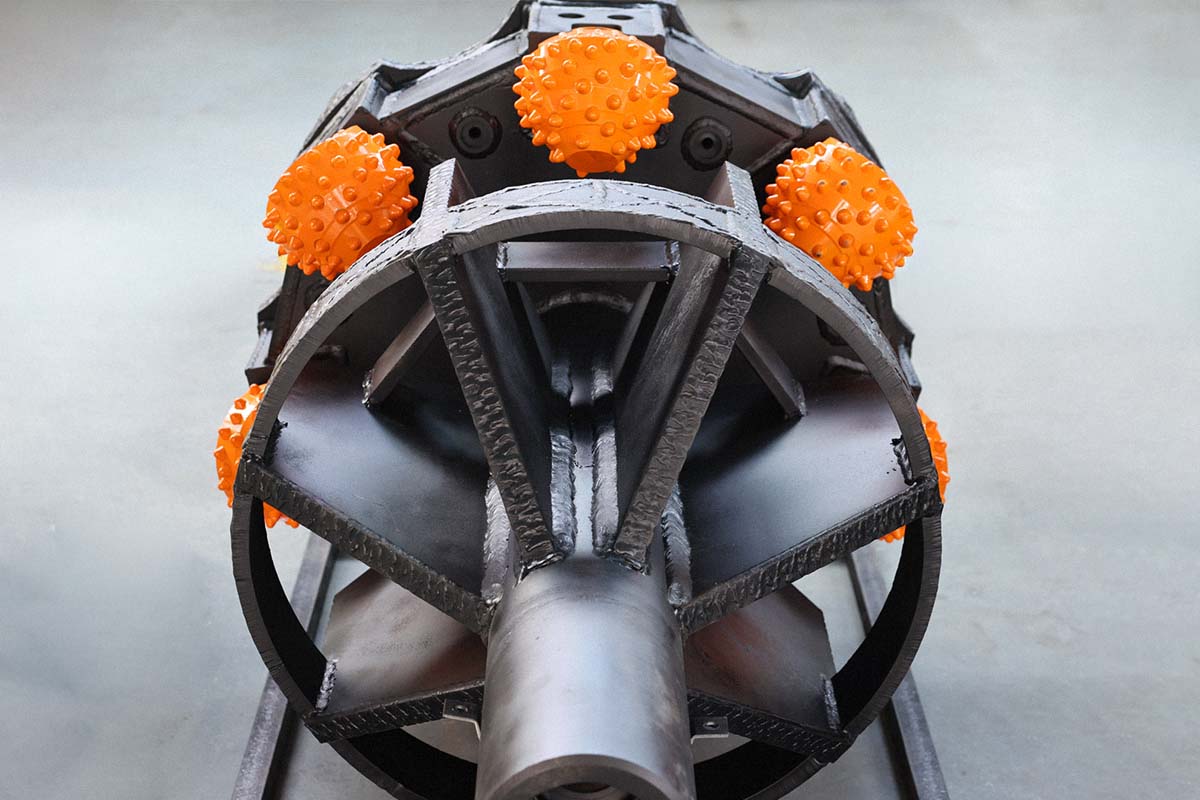

As a robust HDD Rock Reamer, our Welded Hole Opener is engineered for maximum structural integrity during borehole enlargement. The full-welded construction ensures the Tricone cutters remain secure under the extreme torque and vibration of hard rock formations (shale, granite, etc.).

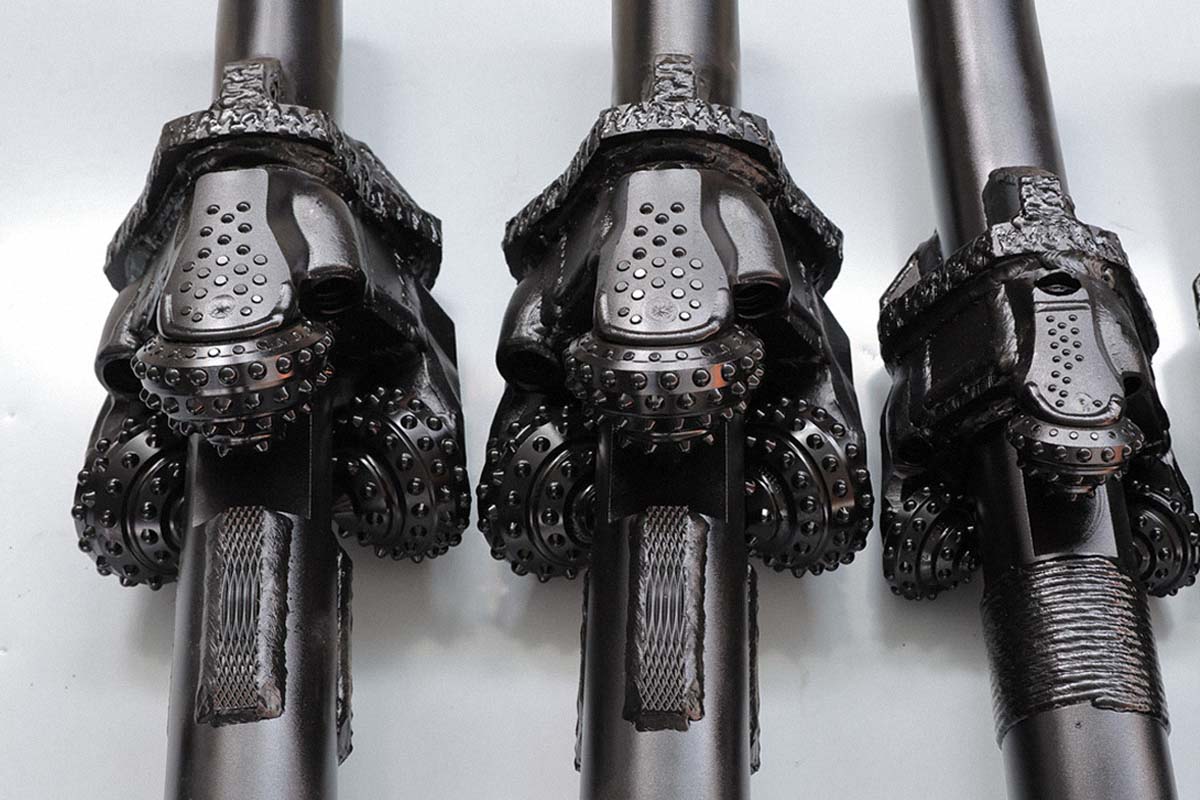

After pilot drilling, horizontal hole openers—especially tricone hole opener bits—are used to expand the borehole step-by-step. Designed for hard rock formations such as shale, limestone, and granite, these hole opener bits ensure efficient cutting, reduced torque, and stable bore enlargement.
• Replaceable roller bit for quick on-site maintenance
• Flexible configuration for different formations
• Consistent drilling performance over long projects
When to Choose Bolt-on Hole Opener
• Long HDD projects
• Mixed or unknown formations
• When minimizing downtime is critical
• Integrated structure for high strength and durability
• Excellent performance in heavy-duty drilling
• Stable operation in demanding formations
When to Choose Welded Hole Opener
• Short-term projects
• Stable formations
• When replacement is not a concern
Choosing the right hole opener becomes more challenging in hard rock and complex ground conditions.
For a detailed selection guide, read our article on
optimal HDD hole opener selection for hard rock and complex ground conditions, where we explain formation matching, cutter selection, and drilling strategies.
• Size: 8-1/2", 12-1/4"
• Fast onsite cutter replacement with 3-bolt system
• Size: 6", 8-1/2", 9-7/8", 12"
• IADC: 517, 537, 617, 637
| OD Size | Roller Bit Size Recommended | Rollers No. Recommended |
|---|---|---|
| 8” (203mm) | 5-7/8” | 3 |
| 10” (254mm) | 6” | 3 |
| 12” (305mm) | 8-1/2” | 3 |
| 14” (356mm) | 8-1/2” | 3 |
| 16” (406mm) | 8-1/2” | 4 |
| 18” (457mm) | 8-1/2” | 5 |
| 20” (508mm) | 8-1/2” | 5 |
| 22” (559mm) | 8-1/2” | 6 |
| 24” (610mm) | 8-1/2” | 7 |
| 26” (660mm) | 12-1/4” | 5 |
| 28” (711mm) | 12-1/4” | 5 |
| 30” (762mm) | 12-1/4” | 6 |
| 32” (813mm) | 12-1/4” | 7 |
| 34” (864mm) | 12-1/4” | 7 |
| 36” (914mm) | 12-1/4” | 8 |
| 38” (965mm) | 12-1/4” | 8 |
| 40” (1016mm) | 12-1/4” | 9 |
With more than a decade of international trade experience, we understand the logistics, regulations, and technical standards of markets around the world. Our global expertise guarantees smooth cooperation and reliable delivery.
Each drilling tool undergoes strict quality inspection - from raw materials to final delivery. Our commitment to quality ensures that it maintains high performance and durability even under the most demanding drilling conditions.
With the ability to travel frequently and meet clients in person, we gain a deep understanding of on-site conditions and project requirements. This allows us to deliver precise, customized solutions that truly meet our clients’ needs.
Want more product details? Send us an inquiry
