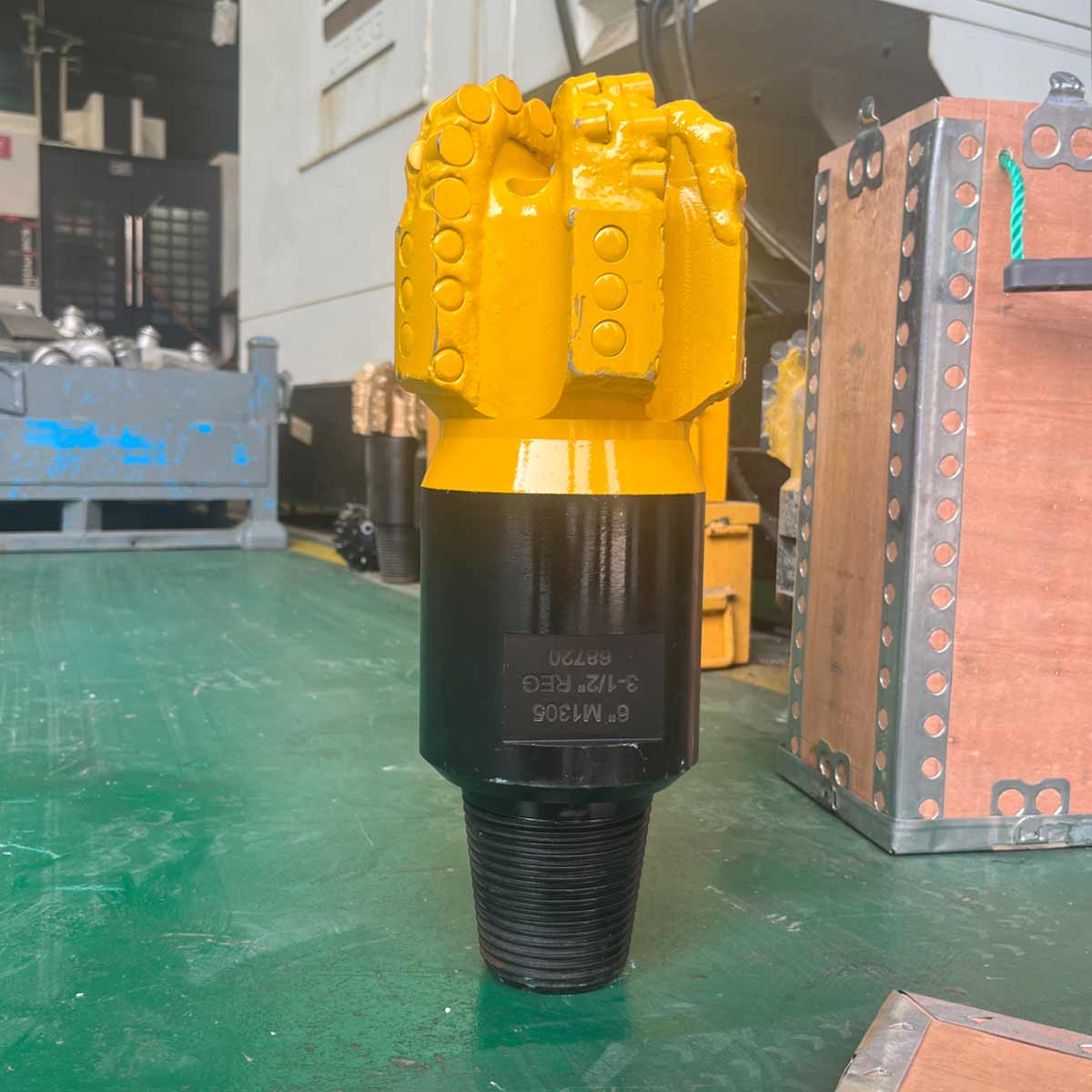

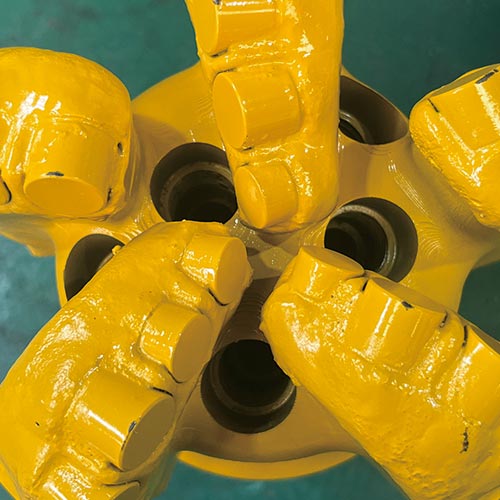

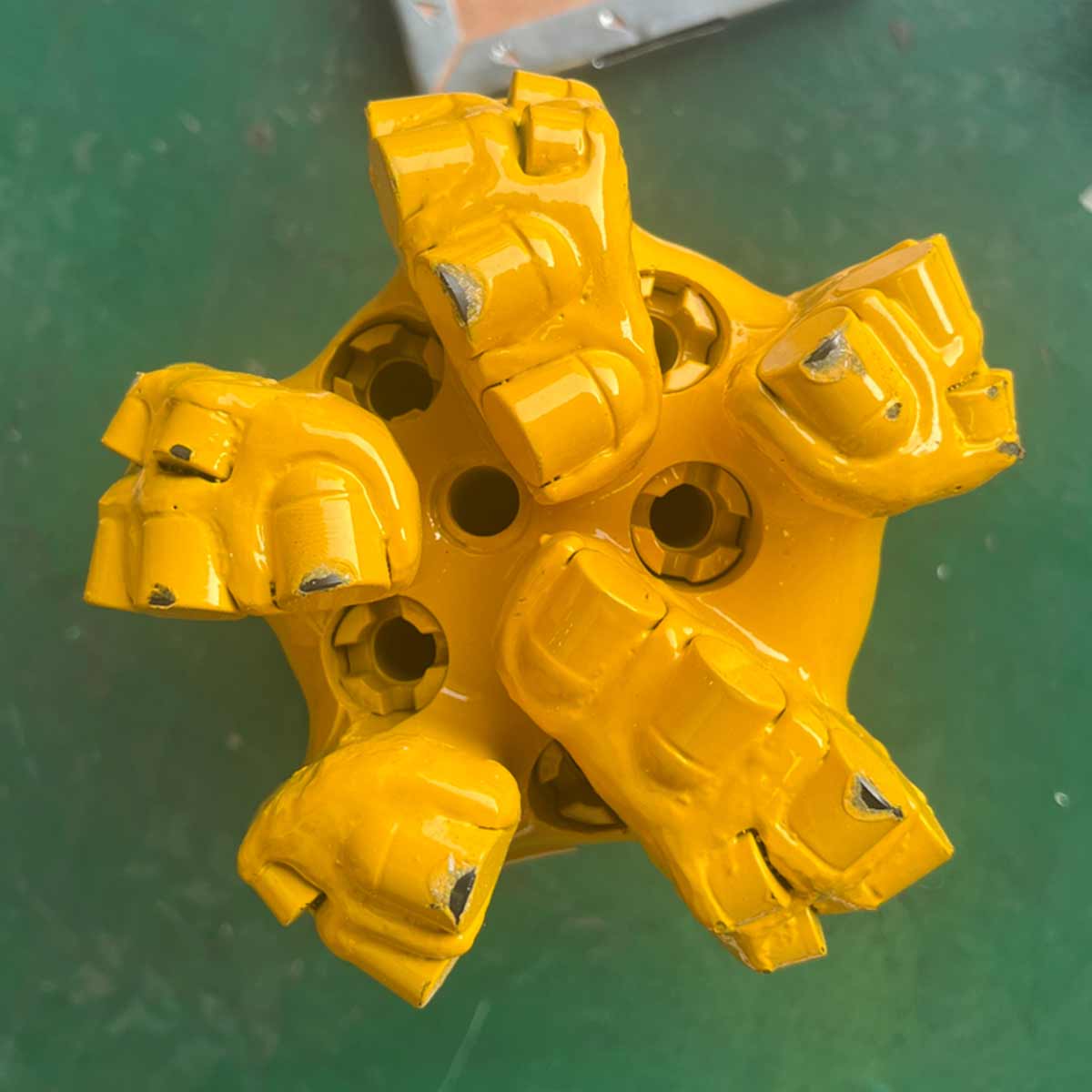

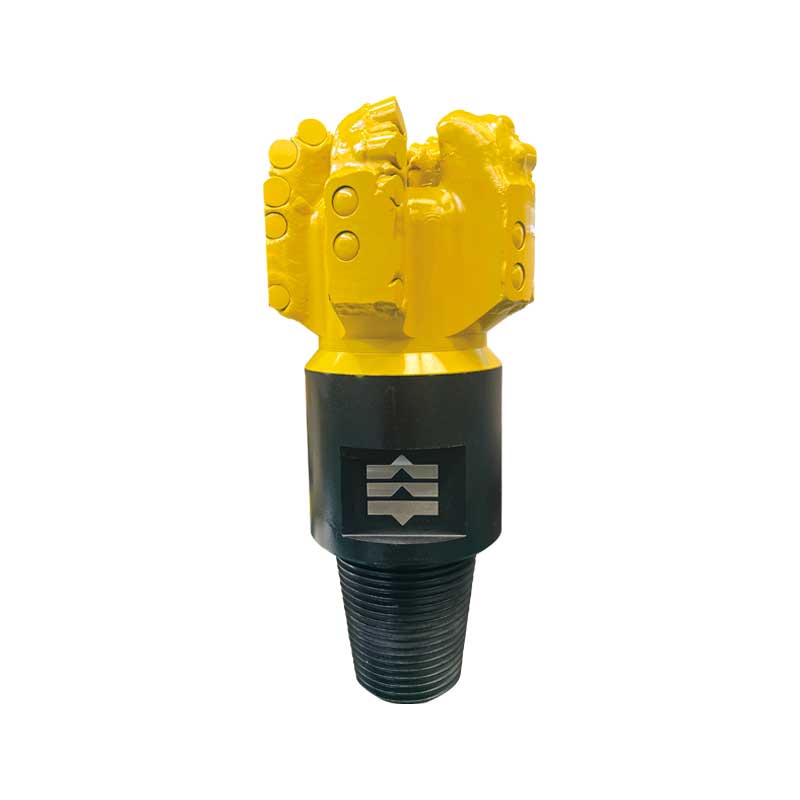

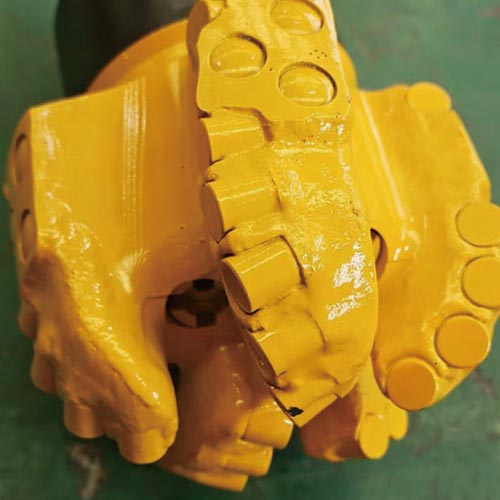

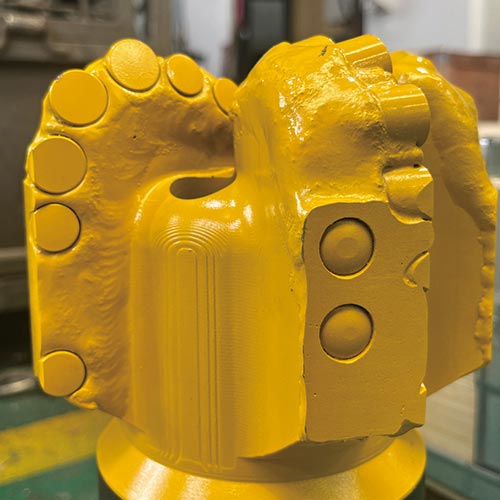

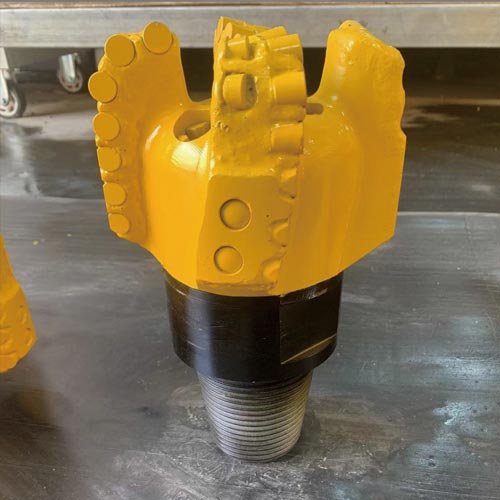

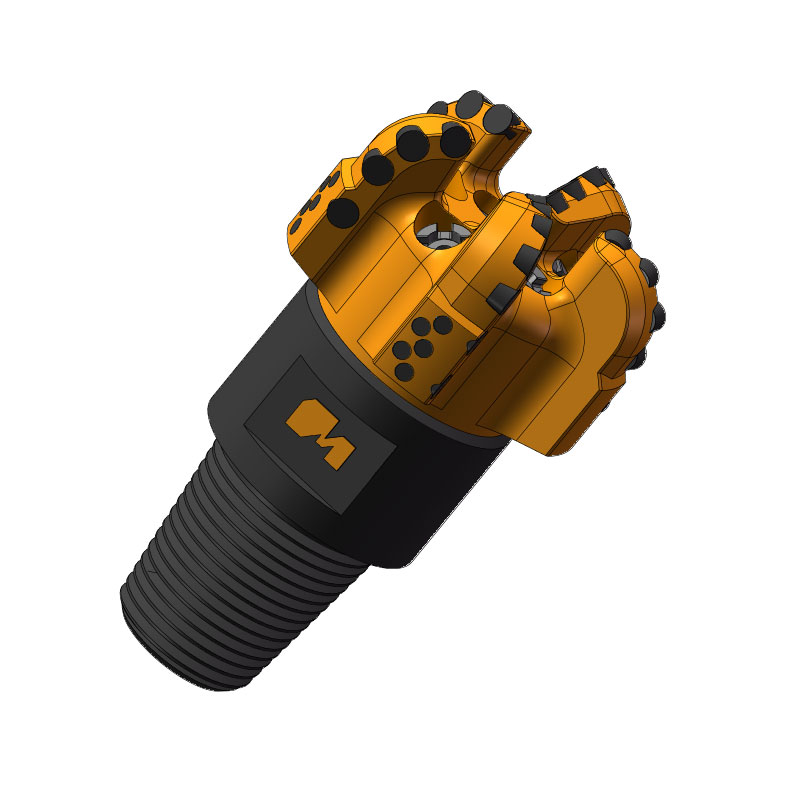

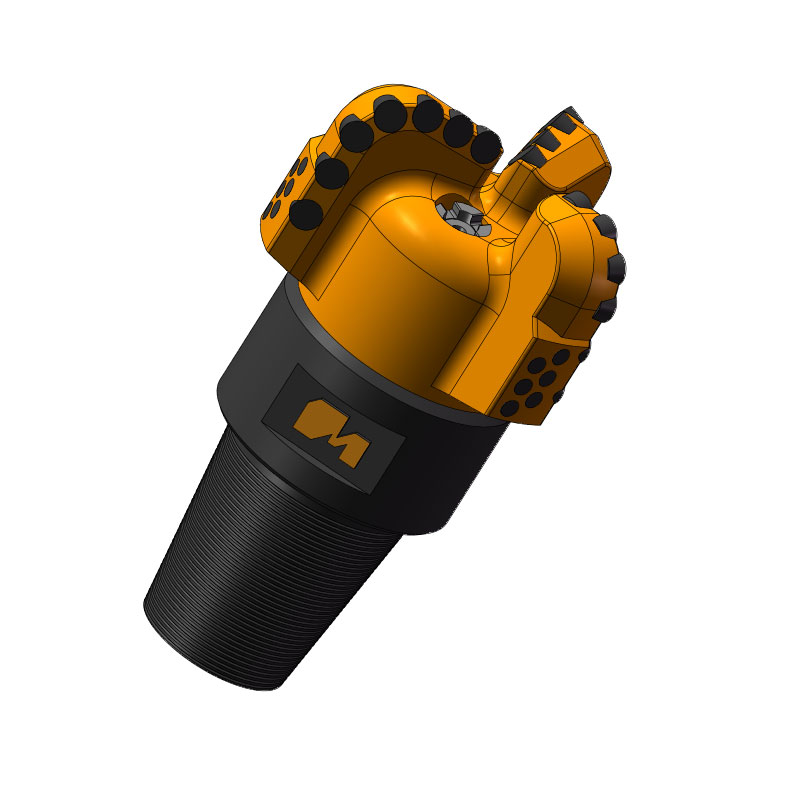

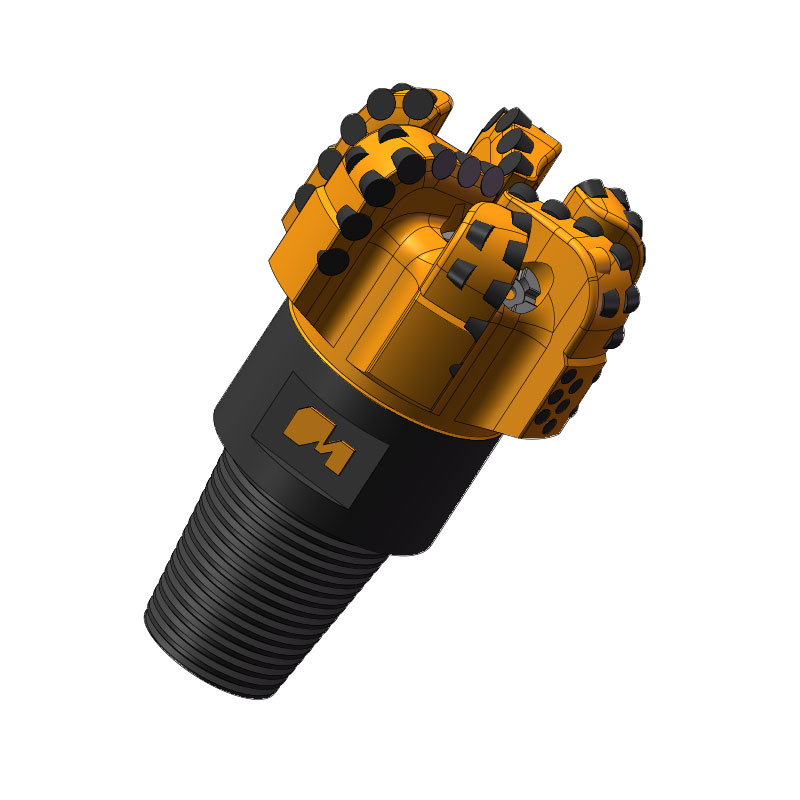

PDC bits used as HDD pilot bits are becoming more and more common nowadays. When it comes to soft and medium – soft formations like sandstone and limestone, the penetration speed can be several times faster than that of conventional tricone bits. Meclead PDC Pilot bits are specially designed for HDD applications. They incorporate the most efficient cutters and blade designs to maximize the working life.
| Size(in) | Cutter Size | Blade | Pin Connection | Rig Compatibility |
|---|---|---|---|---|
| 5-1/2″ | 1313 | 4/5 | 2-7/8″ API Reg | JT2720AT/JT30AT/JT3020AT/D23x30DR S3/ACS130 |
| 6″ | 1313 | 4/5 | 3-1/2″ API Reg | JT4020/JT60AT/JT100AT/D36X50DR/18ACS/20ACS/ACS300 |
| 6-1/2″ | 1313 | 4/5 | 3-1/2″ API Reg | JT4020/JT60AT/JT100AT/D36X50DR/18ACS/20ACS/ACS300 |
| Size(in) | Blade | Thrust(ton) | RPM | Mud Flow(L/min) | Typical Ground |
|---|---|---|---|---|---|
| 5-1/2″ | 4 | Up to 4 | 200-280 | 70-90 | Clay, soft sandstone |
| 6-1/2″ | 5 | Up to 4 | 200-280 | 70-90 | Medium sandstone, shells |
With more than a decade of international trade experience, we understand the logistics, regulations, and technical standards of markets around the world. Our global expertise guarantees smooth cooperation and reliable delivery.
Each drilling tool undergoes strict quality inspection - from raw materials to final delivery. Our commitment to quality ensures that it maintains high performance and durability even under the most demanding drilling conditions.
With the ability to travel frequently and meet clients in person, we gain a deep understanding of on-site conditions and project requirements. This allows us to deliver precise, customized solutions that truly meet our clients’ needs.
