Optimal HDD Hole Opener Selection for Hard Rock and Complex Ground Conditions

January 29, 2026
By Han, Daisy

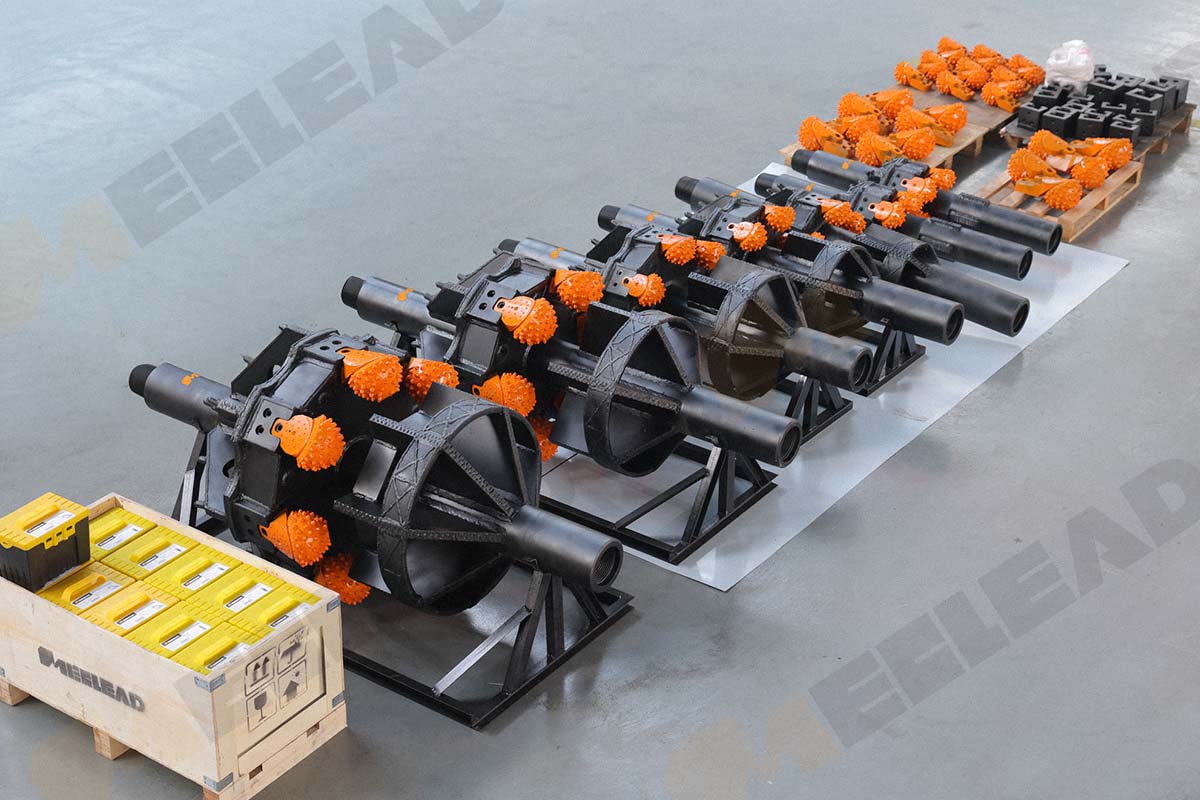

An HDD hole opener is a specialized tool used in Horizontal Directional Drilling to enlarge the pilot hole to a diameter sufficient for the product pipe. Unlike standard reamers, these are heavy-duty tools designed for high-stress environments.

Understanding the Ground Conditions

Drilling through formations like granite, basalt, or limestone requires tools that can handle extreme torque and abrasion. A standard reamer will wear out quickly, leading to costly downtime.

Hard & Competent Rock:For formations like Granite, Basalt, or Quartzite (often exceeding 100-150 Mpa), a roller bit HDD hole opener is mandatory. These tools use crushing force to disintegrate rock without requiring excessive torque.
Medium-Hard Stratum:In Sandstone, Limestone, or Hard Shale, you need a balance of cutting and crushing. Our HDD rock reamers feature optimized TCI (Tungsten Carbide Insert) placement to maintain aggressive cutting while resisting abrasion.
Complex & Intermittent Ground:When moving between clay, gravel, and rock, stability is key. A staged HDD hole opener design ensures the tool doesn’t “bounce”or lead to hole deviation, providing a smooth path for the product pipe.

Key Features of a High-Performance Hole Opener

Replaceable Roller Bit:Instead of replacing the entire tool, you can simply swap the roller bit, significantly reducing maintenance costs.
Precision Fluid Dynamics & Optimized Nozzles:Strategically placed interchangeable nozzles ensure high-velocity mud flow, which cools the cutters and prevents “balling” (clogging) by flushing cuttings away immediately.
Balanced Cutting Structure:Our reamers are engineered with a balanced cutting arrangement to minimize vibration and torque fluctuations, which protects your drill string and increases the stability of the bore.
Heavy-Duty Body Construction:The main body is forged from high-strength alloy steel and heat-treated to withstand the extreme tensile and torsional loads encountered in long-distance river crossings.
Field-Replaceable Design:No on-site welding required, which enhances safety and saves time.

Replaceable vs. Welded: Maximizing Uptime

Maintenance is the biggest hidden cost in HDD.

replaceable type

welded type

Why Meclead Technology Excels in Challenging Strata

Our HDD hole opener design focuses on the two biggest enemies of rock drilling: heat and vibration.

Customized Cutting Structures: We offer different cutter grades based on the specific HDD formation analysis of your site.

Superior Fluid Dynamics: Strategically placed nozzles ensure that rock cuttings are flushed out efficiently, preventing”balling”in sticky or mixed formations.

Explore Meclead’s exploration drilling solutions.

We provide high-efficiency, precision drilling equipment and technical support to ensure the success of mineral, geological, and engineering projects under complex global conditions.
