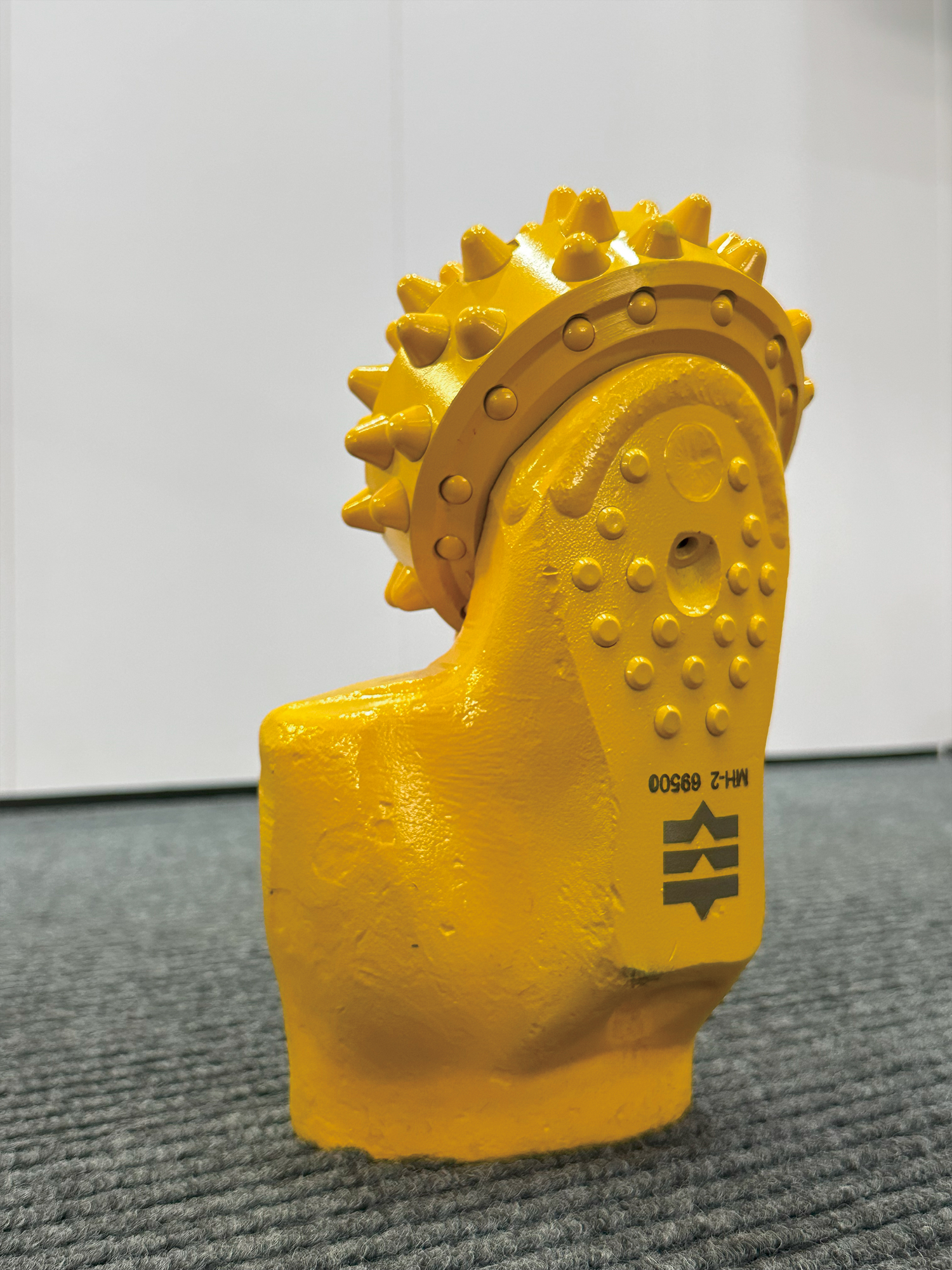

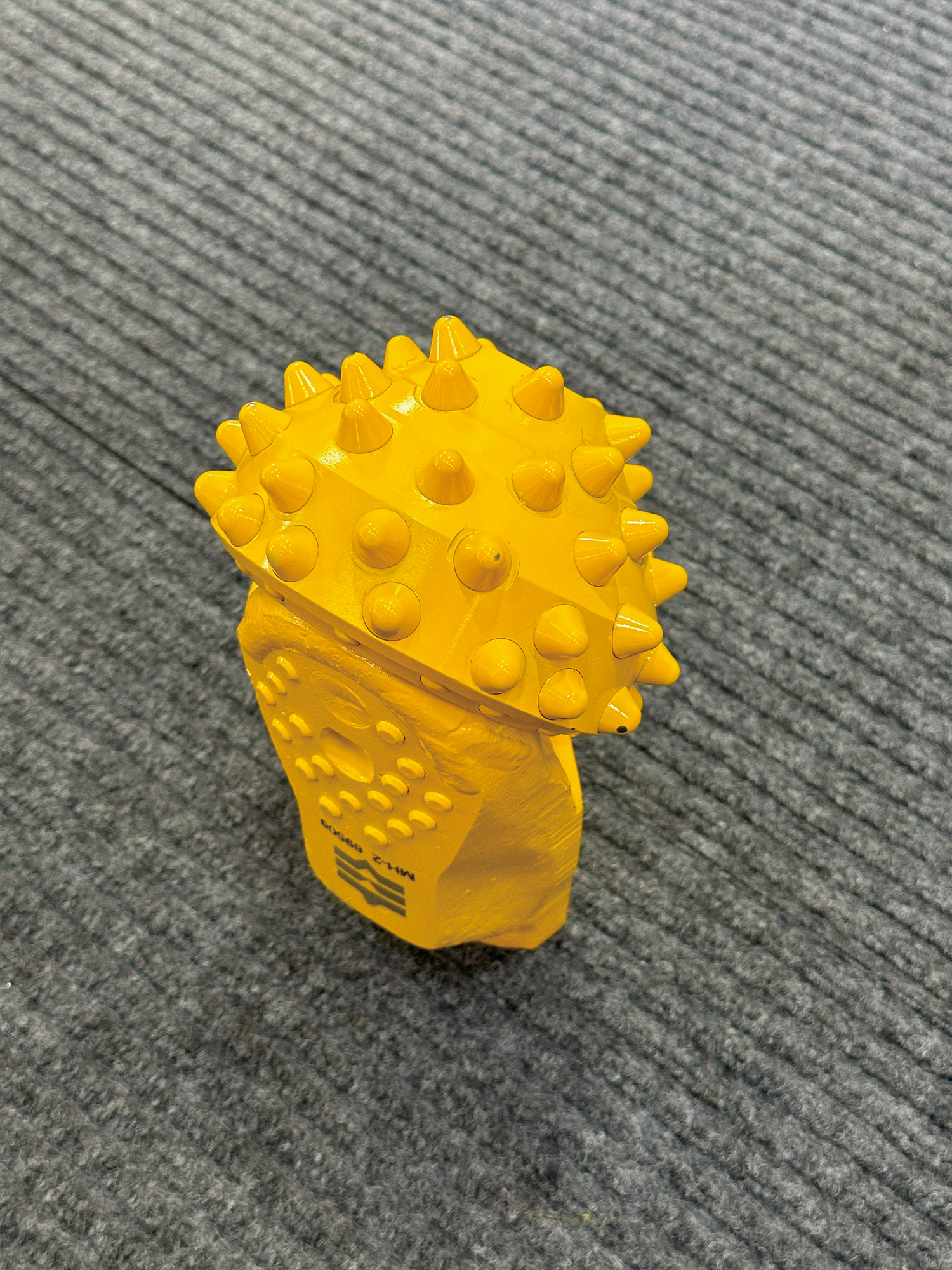

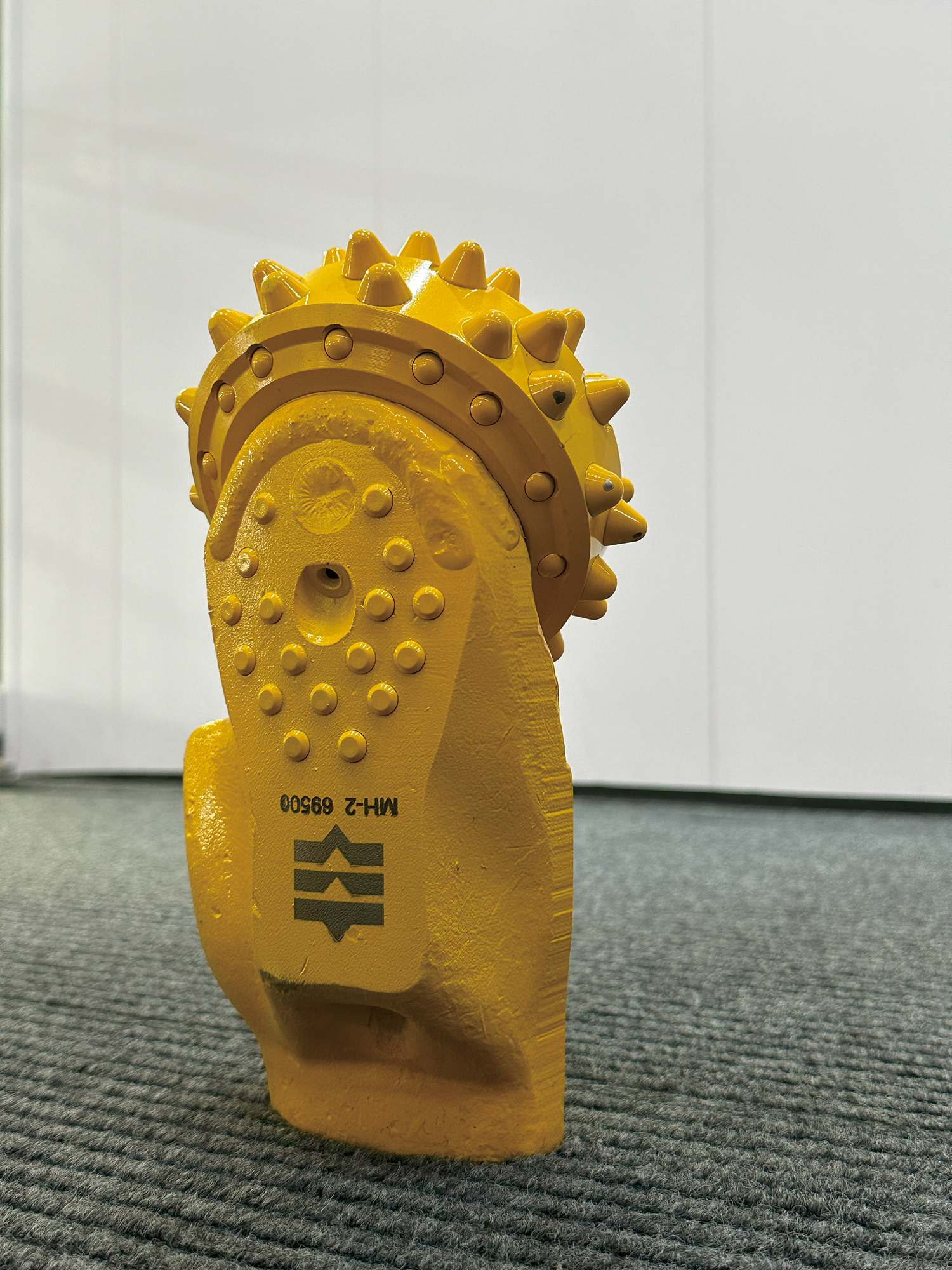

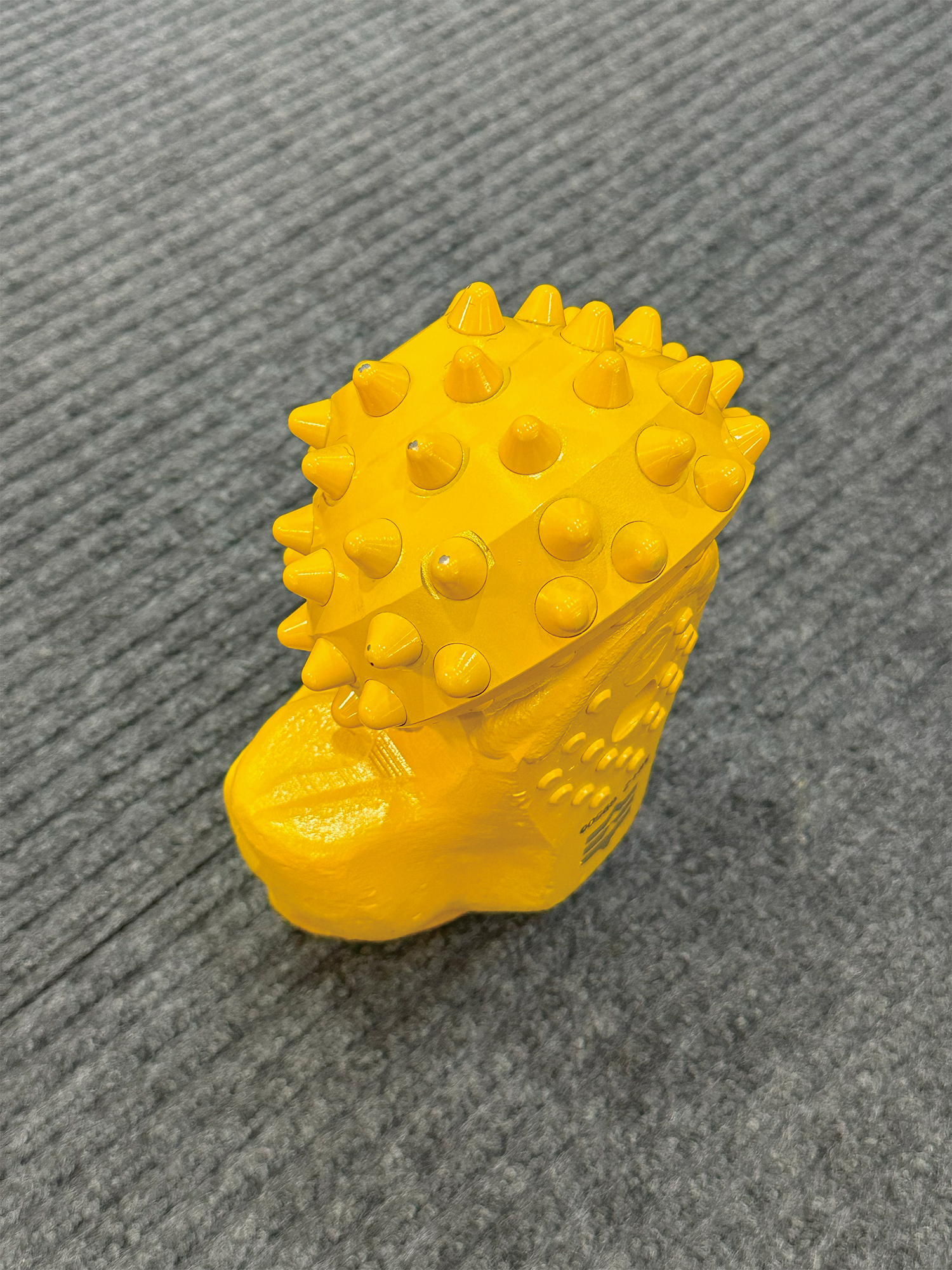

MH-2 Roller Bit for Roller Bit Drilling

The MH-2 roller bit from Meclead is engineered for roller bit drilling and heavy foundation applications. Featuring 52 large tungsten carbide inserts, a traditional oil & gas body, dual seals and a vacuum grease system, this roller bit delivers stable rock penetration, extended service life and reliable performance in demanding drilling conditions.




Meclead roller bit for hard rock drilling used with core barrel systems

Product Description:

  • Insert count: 52 pieces
  • Insert Size: 14mm
  • Body type: Tradtional oil and gas body
  • Cone size: 139mm (with inserts)
  • Body width: 125mm
  • Connection type: Welding
  • Grease: Vacuum grease system special design for piling application

Perfect Inserts for Every Rock Type

Roller bit chisel type

Chisel

60-110MPa

Roller bit conical type

Conical

100-180MPa

Roller bit spherical type

Spherical

130-280MPa

Advance Features

52-inserts-roller-bit-head

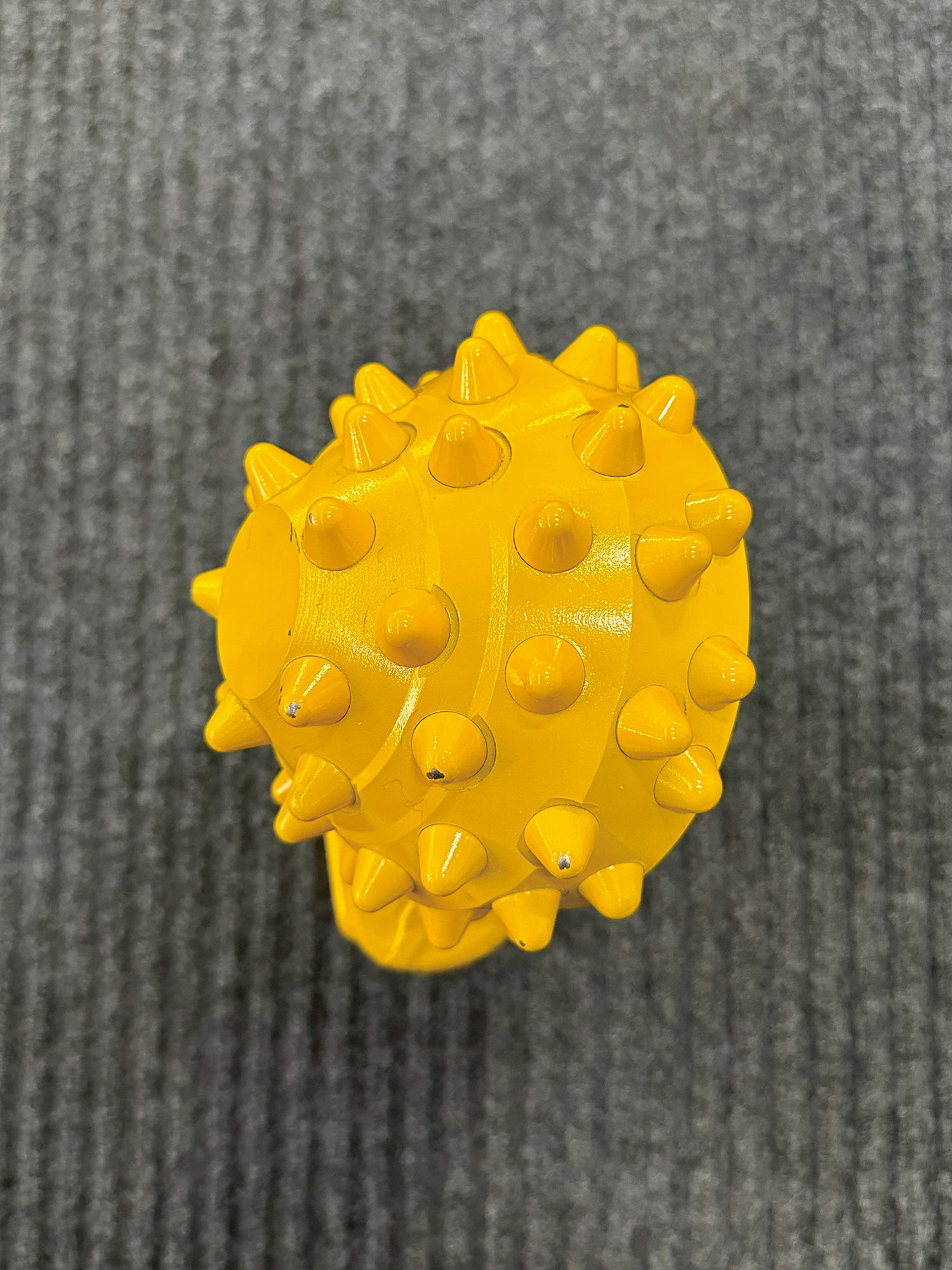

52 Large Inserts

The cone covered with 52 pieces 14mm large inserts. The whole cone is covred without any blink point. It it increase the penetration speed and working life.

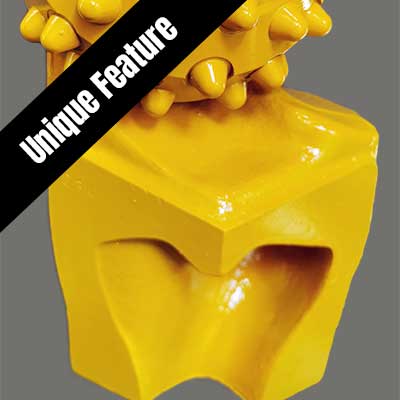

Traditional Body

MH-2 is with the traditional body from oil and gas. It has a history more than 100 years, and been proved to be strong and durable.

Double Sealing

additional to the traditional sealing, we apply another CNC surface as additional sealing to prevent the dust into the bearing

Bearing Hard Alloy Apply

All the roller bearings covered by the hard alloy to apply extra hardness

Vacuum Grease System

Pull the air out of the body, then push the high end grease in, make sure the roller has enough grease for the whole life span
